Battery-electric Pickup 460km/ 520km Radar RD6 4WD Price & Specs From China Wholesaler
| Body style: | 4-door Pickup truck |
| Power output: | 200 kW (272 PS; 268 hp) |
| Pure electric range (km) CLTC | 460/520 |
| Maximum power (kW) | 315(428Ps) |
| Maximum torque(N-m) | 594 |
| Charging time (hours) | Fast charge 0.5 hours |
| OfficialQ-100km/h acceleration time (s) | 4.5 |
| Seats： | 5 |
For product pricing, customization, or other inquiries:
Share to

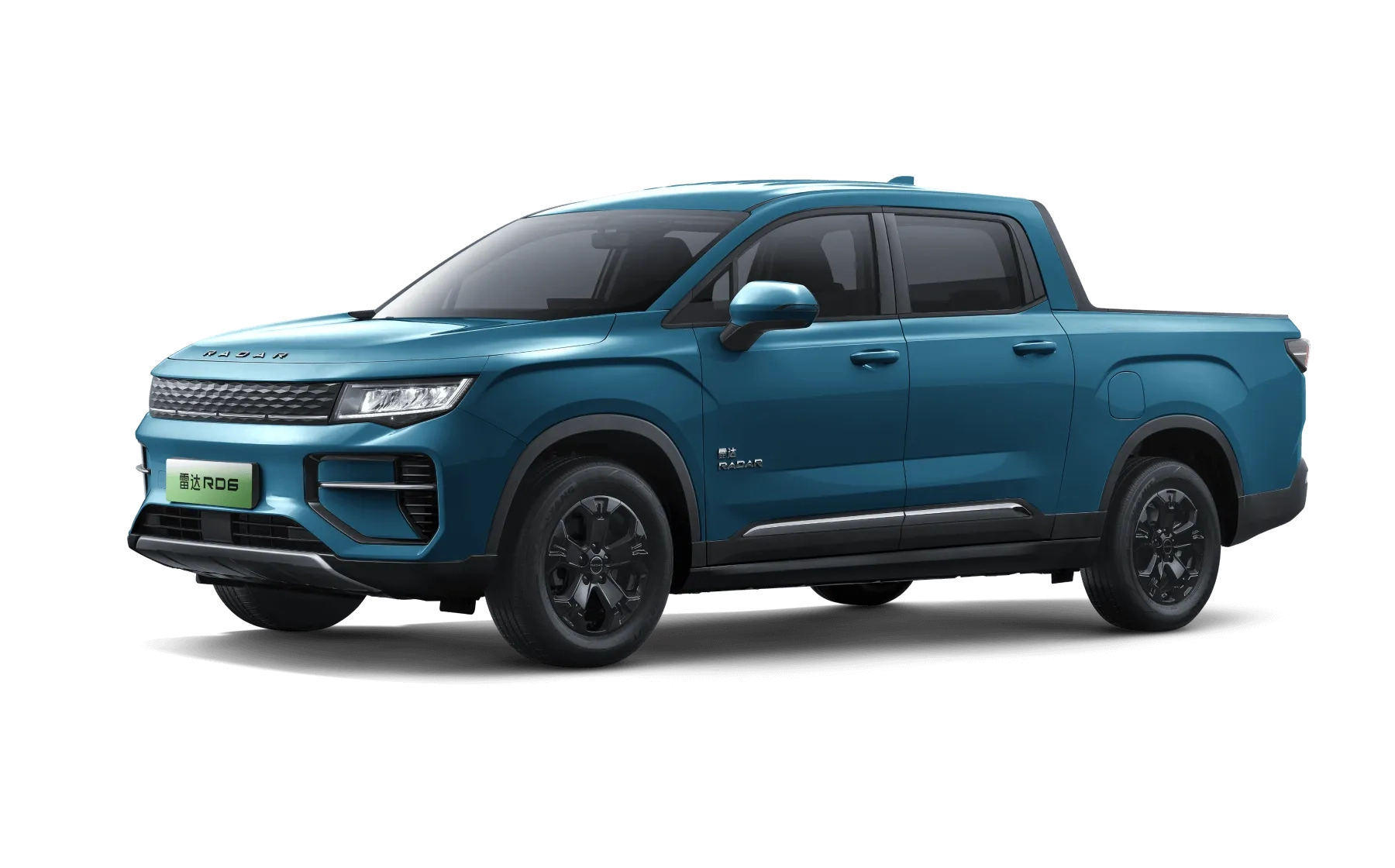

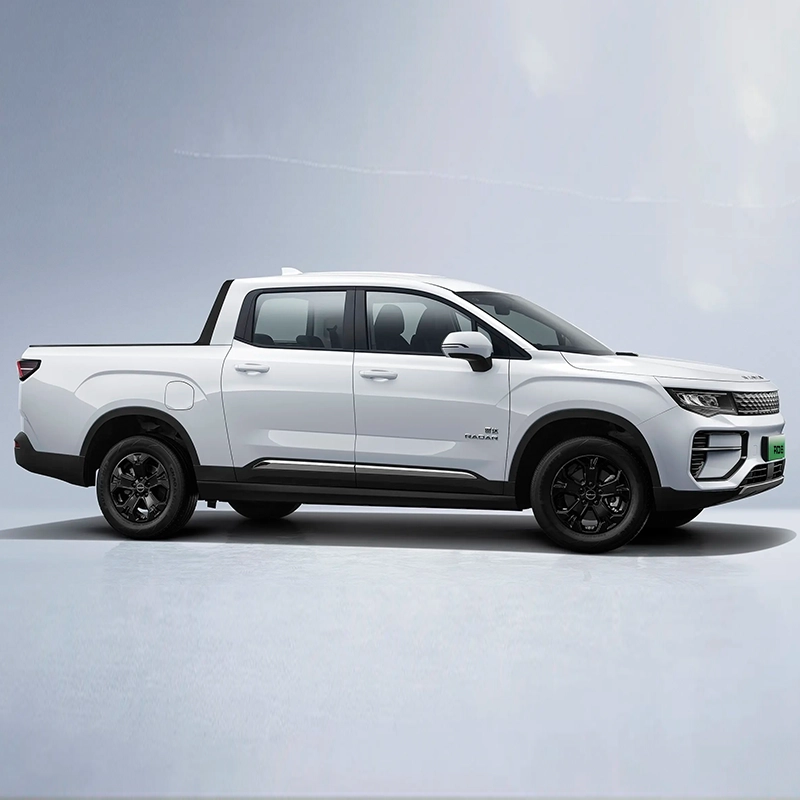

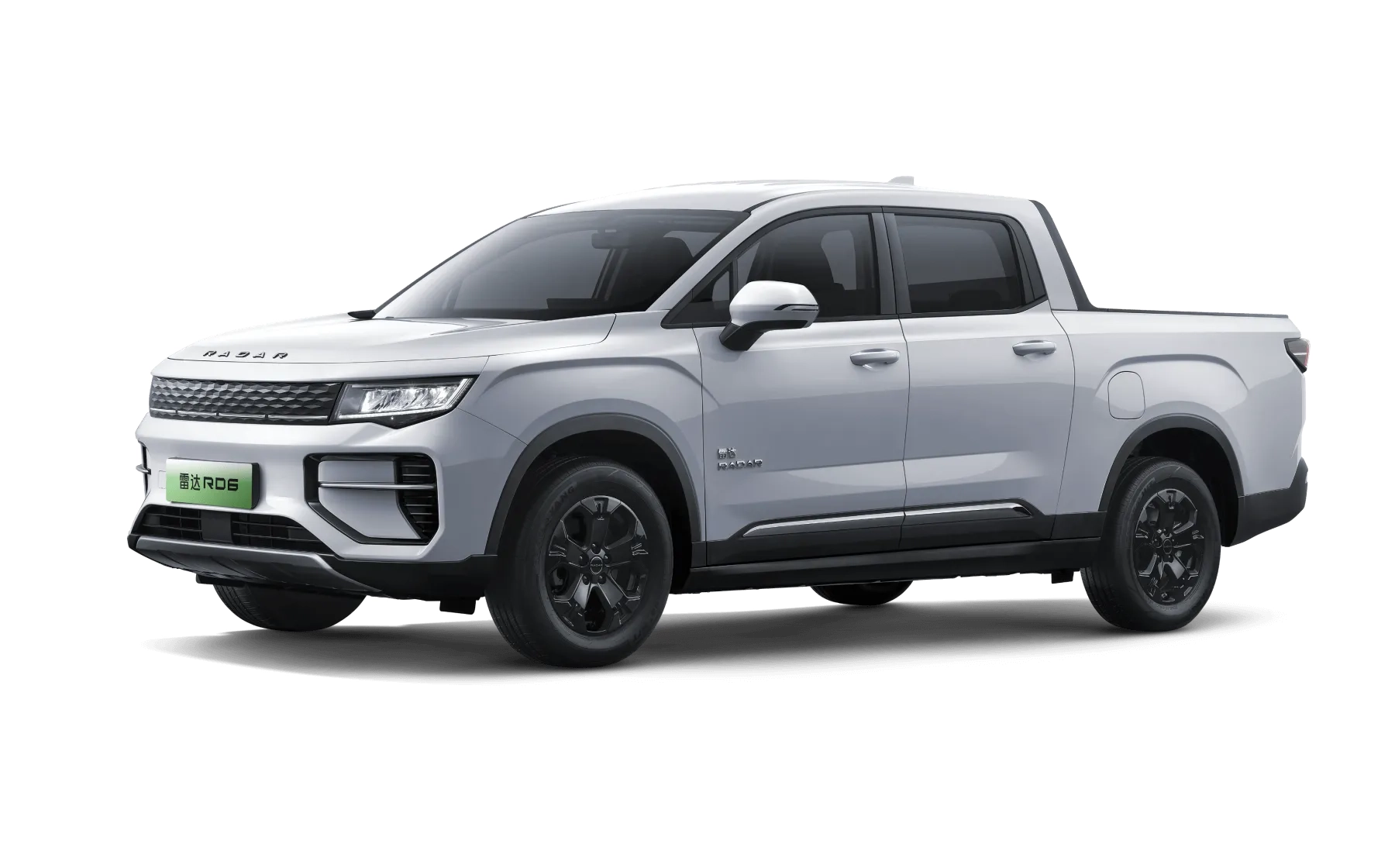

Battery-electric Pickup Radar Horizon RD6
Radar Horizon RD6 is a dual high-performance permanent magnet synchronous electric drive system, with a peak total power of 315 kW and a peak torque of 594 Nm, enough to accelerate the pickup from 0 to 100 km/h in about 4.5 seconds and reach a top speed of 190 km/h. Wading depth is 815 mm and the no-load climbing degree can reach 95%, and the full-load climbing degree can reach 65%. Turning radius is just 3.5 meters. There is now a super external discharge function with can provide maximum power of 21 kW which allows the pickup to operate as a far more effective work tool providing on site electrical power.

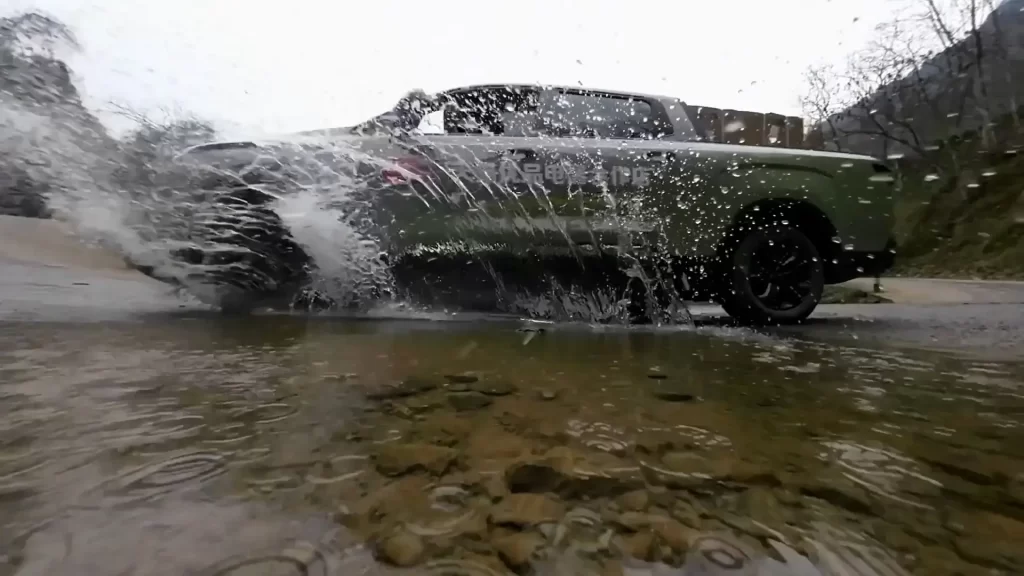

The Radar Horizon RD6 has seven driving modes including off-road focussed ones and these can be switched using voice control. An intelligent all-terrain feedback system allows the pickup to adjust the torque distribution of all the four wheels.
MODEL CONFIGURATION
Rated load
800kg
Electric range (CLTC)
460km
Max. power
315kW
Max. torque
594Nm
HIGH PERFORMANCE
Giant Treighter
The maximum rated load is 800kg, doubling the delivery efficiency

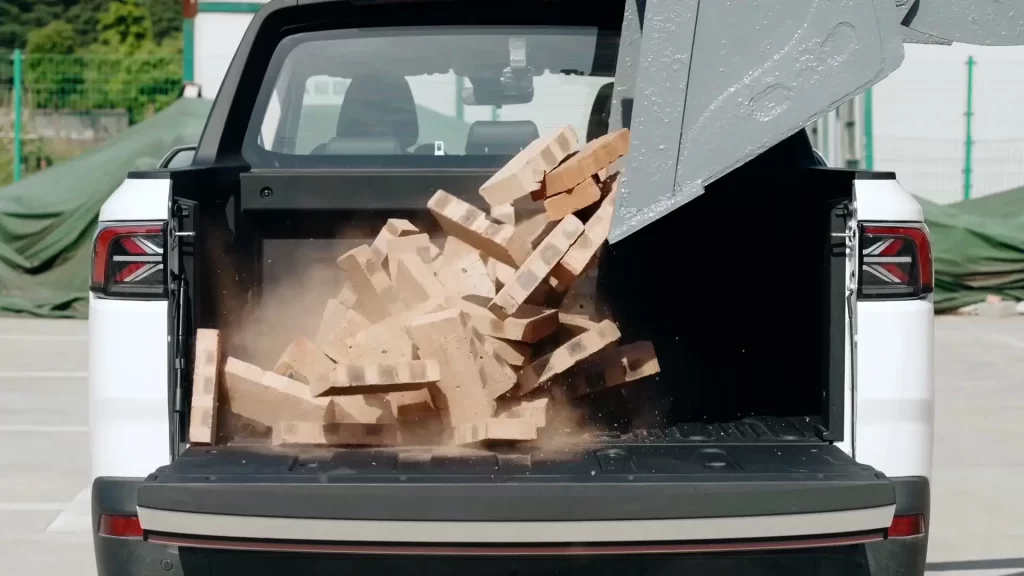

Solid and rust-free STC ultra-strong polymer container.
Body torsional stiffness up to 30300Nm/deg
Official 0-100km/h acceleration time 4.5s.
Top speed 185km/h, easy overtaking at high speeds
Unladen ground clearance 221mm Fully loaded ground clearance 180mm Turning radius 6.1m. While carrying nearly 1 ton of cargo, it can still easily cross unpaved roads with complex road conditions such as ditches and ridges.

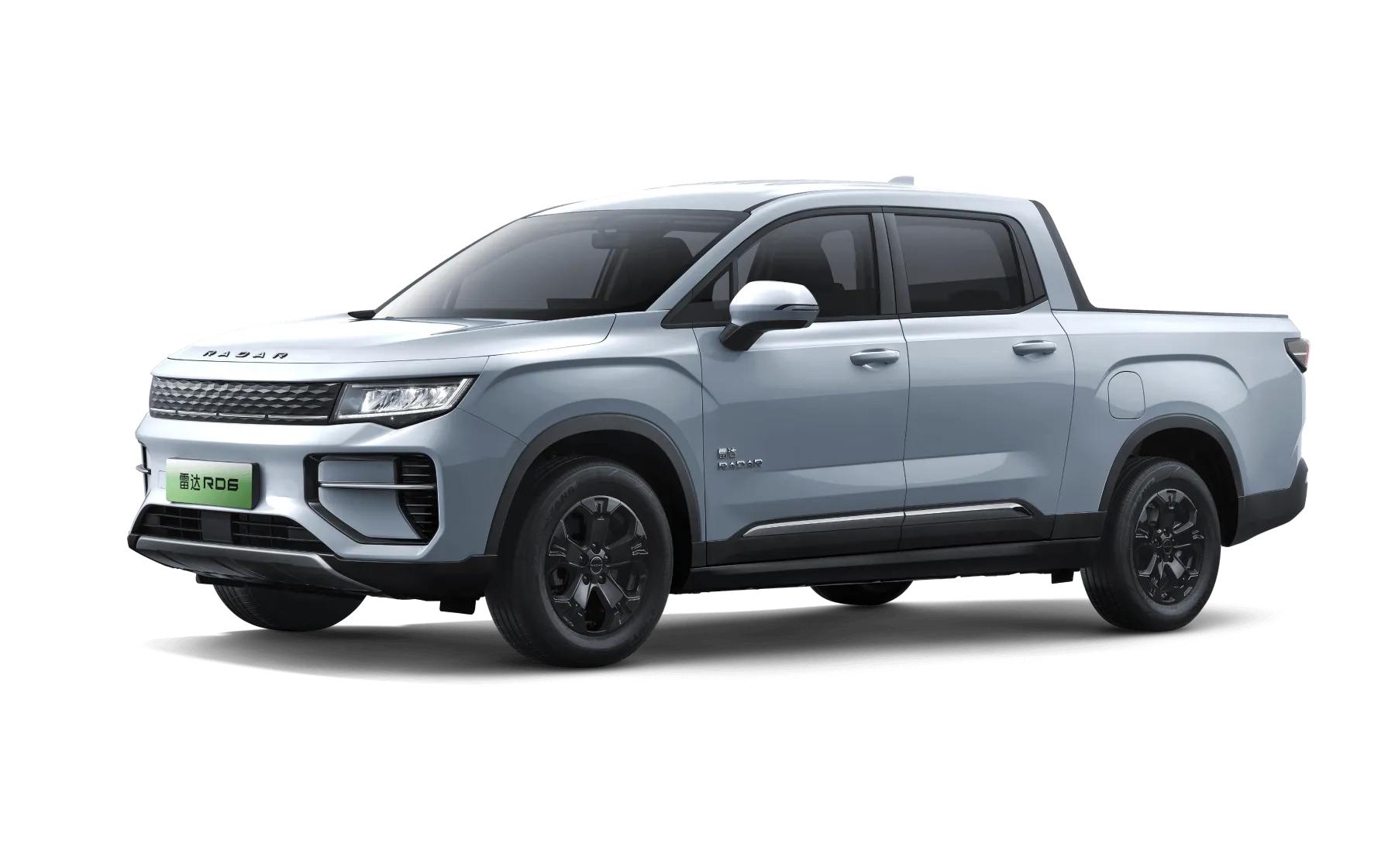

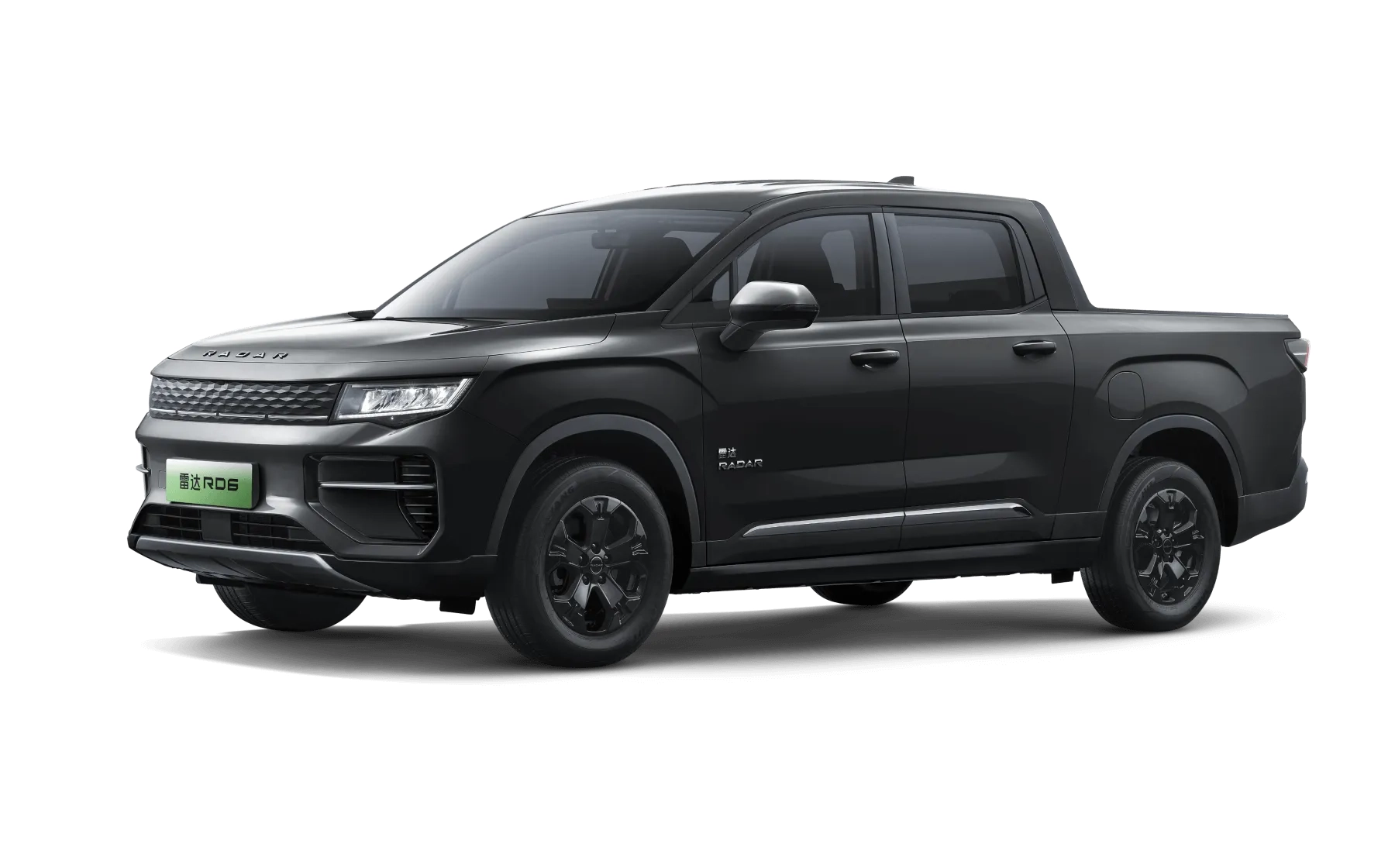

EXTERIOR COLOR
COMFORTABLE
Four-wheel independent suspension provides a comfortable ride like a passenger car, with shock absorption and no bumps on the road.
Purely electric and silent, you can rest still at high speeds and enjoy the quietness.
SAFETY

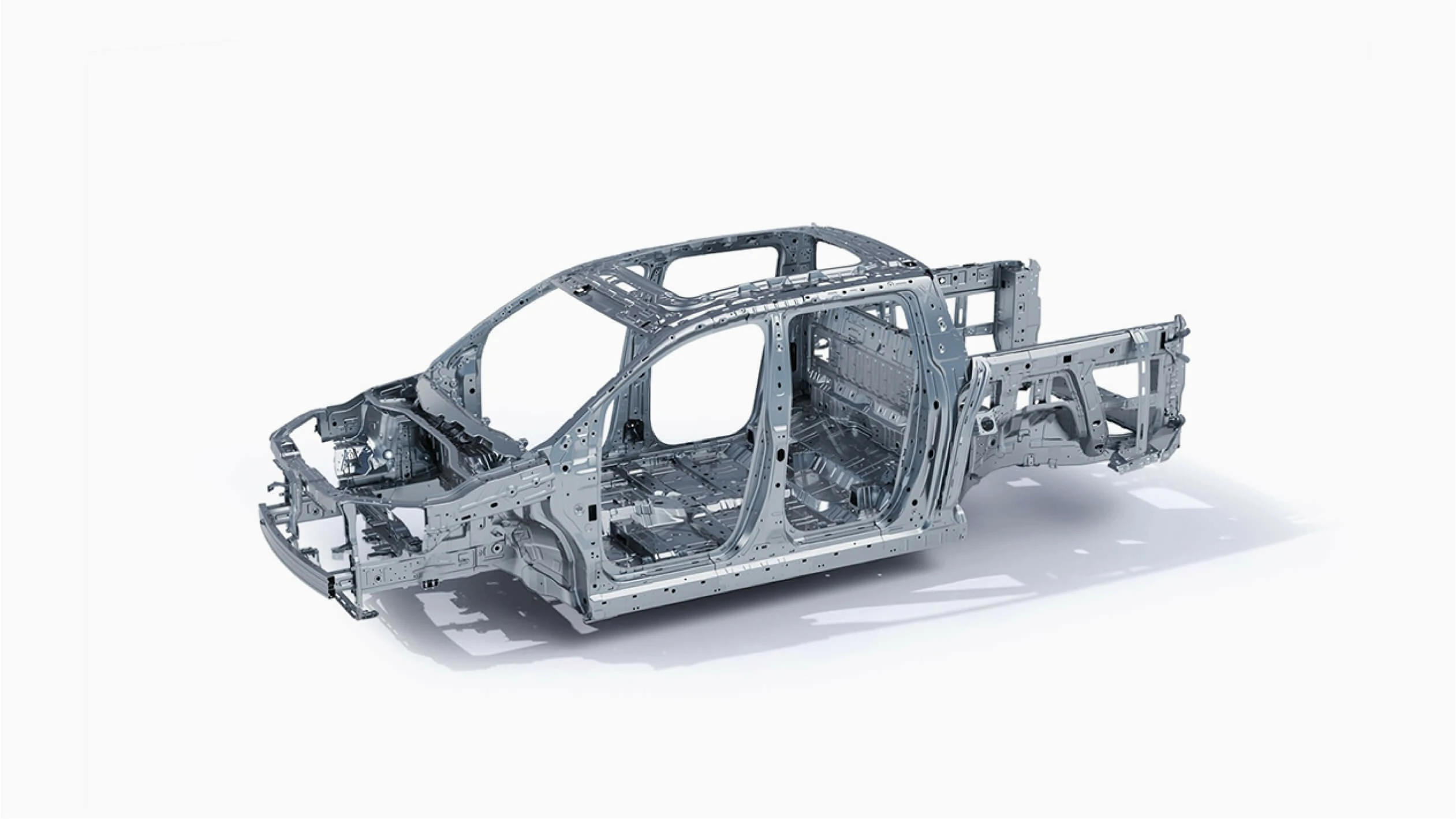

Integrated skeletal body technology is more advanced than the split structure of traditional pickup trucks, effectively dispersing the impact force during a collision to ensure safety and body durability.
70% high-strength steel, providing ultra-high strength
Support and protect occupant safety
The braking distance is 38m, the same braking distance.
2 seconds longer response time than conventional pickups
The Radar RD6 is an all-electric mid-size pickup truck produced by the Chinese automaker Geely under the Radar brand. It is built on the Sustainable Experience Architecture. The interior shares many parts with the Geely Haoyue SUV. Radar Auto has its own R&D facility in Hangzhou and an EV plant in Zibo, Shandong.
RADAR RD6 Horizon Specifications
| Models | Radar RD6 2024 Horizon Air 460km 4WD | Radar RD6 2024 Horizon Air 520km 4WD | Radar RD6 2024 Horizon Max 460km 4WD |
| Official Guide Price | 181,800 RMB | 221,800 RMB | 209,800 RMB |
| Basic Information | |||
| Manufacturer | Radar Auto | Radar Auto | Radar Auto |
| evel | Midsize pickup truck | Midsize pickup truck | Midsize pickup truck |
| Energy Type | Pure Electric | Pure Electric | Pure Electric |
| Availability | 2024.04 | 2024.04 | 2024.04 |
| Electric Motor | Pure electric 428 horsepower | Pure electric 428 horsepowel | Pure electric 428 horsepower |
| Pure electric range(km) Ministry of Industryand Information Technology. | 460 | 520 | 460 |
| Pure electric range (km) CLTC | 460 | 520 | 460 |
| Charging time (hours) | Fast charge 0.5 hours | Fast charge 0.5 hours | Fast charge 0.5 hours |
| East charging capacity_ (%) | 30-80 | 30-80 | 30-80 |
| Maximum power (kW) | 315(428Ps) | 315(428Ps) | 315(428Ps) |
| Maximum torque(N-m) | 594 | 594 | 594 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehide single speed gearbox | Electric vehide single speed gearbox |
| Length x width xheight (mm) | 5260x1900x1880 | 5260x1900x1880 | 5260x1900x1880 |
| Body structure | 4-door 5-passenger pickup | 4-door 5-passenge pickup | A-door 5-passenge pickup |
| Maximum speed (km/h) | 190 | 190 | 190 |
| Official 0-50Km/h acceleration time (s) | |||
| Official 0-100km/h acceleration time (s) | 4.5 | 4.5 | 4.5 |
| Power consumption per 100km(kWh/100km) | 16.5kWF | 16.5kWh | 16.5kWF |
| Electric energy equivalent fuel consumption (L/100km) | |||
| Vehicle warranty period | 4 years or 100,000 km | 4 years or 100.000 km | 4 years or 100,000 km |
| First Owner Warrant Period | |||
| Body | |||
| Length(mm) | 5260 | 5260 5260 | |
| Width(mm) | 1900 | 1900 1900 | |
| Height(mm) | 1880 | 1880 1880 | |
| Wheelbase(mm) | 3120 | 3120 3120 | |
| Eront wheel track(mm) | 1600 | 1600 | 1600 |
| Rear track(mm) | 1620 | 1620 | 1620 |
| Body structure | Pickup | Pickup | Pickup |
| Number of doors | 4 | 4 | 4 |
| Door opening_method | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 5 | |
| Curb weight(kg) | |||
| Maximum load mass (kg) | |||
| Fullload mass (kg). | |||
| Traction weight (kg) | 3000 | 3000 | 3000 |
| Front luggage compartment volume (L) | 70 | 70 | 70 |
| Minimum turning radius | 6.1 m | 6.1 m | 6.1 m |

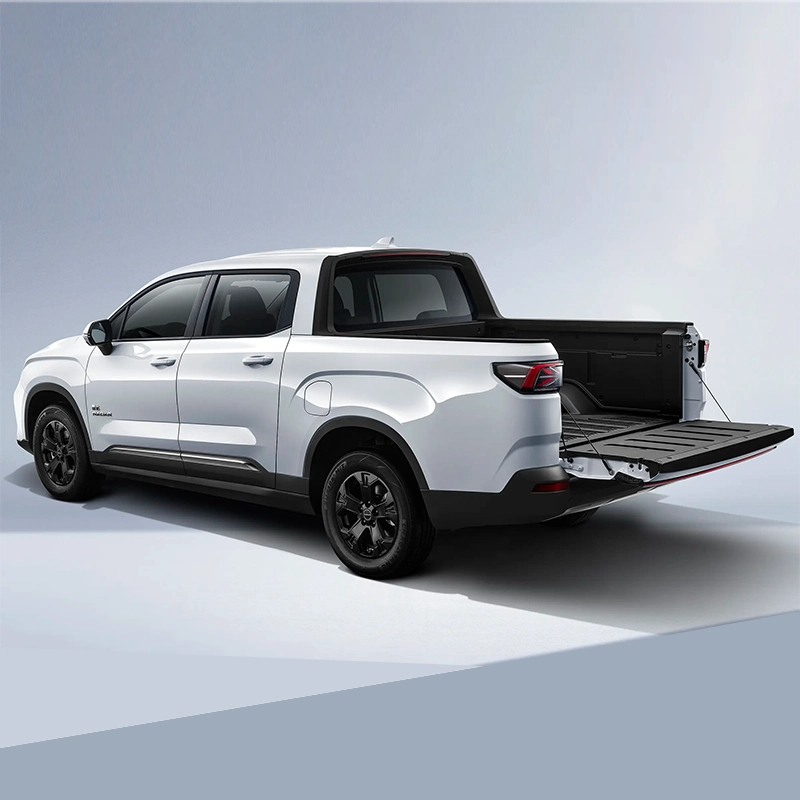

| Cargo box length x width x height(mm) | 1525x1450x540 | 1525x1450x540 | 1525x1450x540 |
| Drag coefficient (Cd) | |||
| Electric Motor | |||
| Motor Description | Pure electric 428 horsepower | Pure electric 428 horsepower | Pure electric 428 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 315 | 315 | 315 |
| Total motor horsepower (Ps) | 428 | 428 | 428 |
| Total torque of the motor (N-m) | 594 | 594 | 594 |
| Maximum power of front motor (kW) | 115 | 115 | 115 |
| Maximum torque of front motor (N-m) | 210 | 210 | 210 |
| Maximum power of rear motor (kW) | 200 | 200 | 200 |
| Maximum torque of rear motor(N-m) | 384 | 384 | 384 |
| Number of drive motors | Dual motors | Dual motors | Dual motors |
| Motor layout | Front +rear | Front +rear | Front +rea |
| Charging batteries | |||
| Battery Type | Lithium iron phosphate battery | Ternary lithium battery | Lithium iron phosphate battery |
| Battery Brand | – | – | – |
| Battery Pack Warranty | 8 years or 200,000 km | 8 years or 200,000 km | 8 years or 200,000 km |
| Battery capacity_ (kWh) | 73 | 86 | 73 |
| Battery energy density (Wh/kg) | – | – | – |
| Battery charging rate | – | – | – |
| Charging batteries | Fast charge 0.5 hours | Fast charge 0.5 hours | Fast charge 0.5 hours |
| ·Fast charging port | ·Fast charging port | ·Fast charging port | |
| Maximum fast charging power (kw) | 100 | 100 | 100 |
| Fast charging port location | – | – | – |
| Slow charging port location | – | – | – |
| Battery Temperature Management System | – | – | – |
| ·Liquid Cooling | ·Liquid Cooling | ·Liquid Cooling | |
| Single pedal mode | – | – | – |

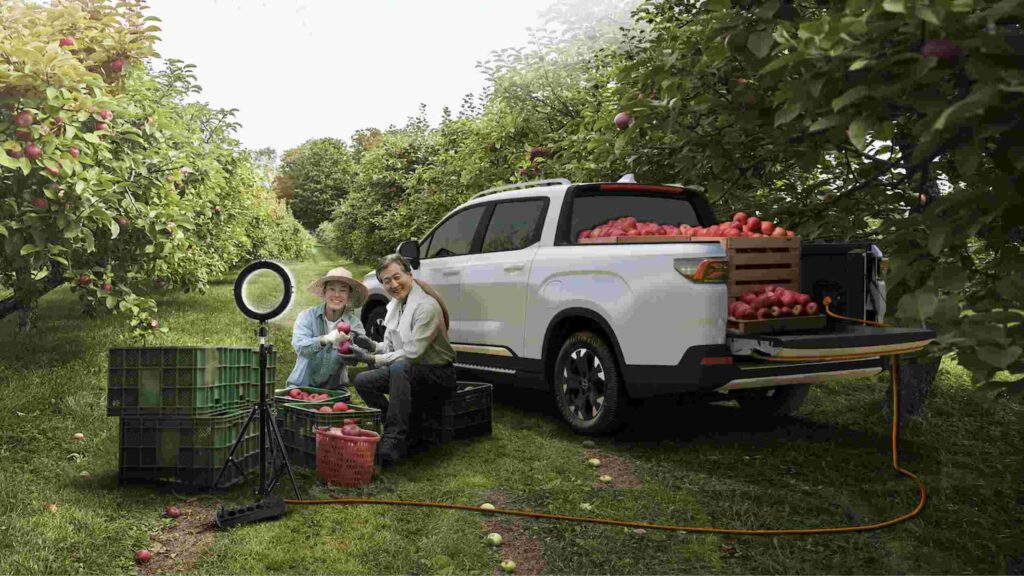

| VTOL mobile power station function | ·Standar | ·Standarc | ·Standarc |
| VTOL maximum external discharge power | – | – | – |
| VTOV maximum external discharge powel | – | – | – |
| Gearbox | |||
| Gearbox Description | Electric vehicle single speed gearbox | Electric vehide single speed gearbox | Electric vehide single speed gearbox |
| Number ofgears | 1 | 1 | 1 |
| Gearbox Iype | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Chassis/Steering | |||
| Drive mode | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive |
| Four-wheel drive type | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | McPherson independent suspensjon | McPherson independent suspensior | McPherson independent suspensior |
| Rear suspension type | Multi-link independent suspensior | Multi-link independent suspensior | Multi-link independent suspensior |
| Steering type | Electric power assist | Electric power assist | Electric power assist |
| Vehide structure | Load-bearing | load-bearinc | load-bearinc |
| Wheels/Brakes | |||
| Eront brake type | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake type | Ventilated disc | Ventilated disc | Ventilated disc |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Rear tire size | 235/65 R17 | 235/65 R17 | 235/60 R18 |
| Spare tire specifications | – | – | – |
| Active safety ·Standard 。Optional -none | |||
| ABS anti-lock braking system | ·Standard | ·Standard | ·Standard |
| Braking force distribution (EBD/CBC,etc) | ·Standard | ·Standard | ·Standard |
| Brake assist(EBA/BA,etc) | ·Standard | ·Standard | ·Standard |
| Traction controL(TCS/ASR etc) | ·Standard | ·Standard | ·Standard |
| Vehicle stability system (ESP/DSC,etc) | ·Standard | ·Standard | ·Standard |
| Active safety warning system | – | – | ·Lane Departure Warninc |
| – | – | ·Forward Collision Waninc | |
| – | – | ·Rear Collision Warning | |
| – | – | ·Reversing side warning | |
| – | – | ·DOW door opening warning | |
| Active braking | – | – | ·Standard |
| Lane assist | – | – | ·Standard |
| Lane Keeping Assist System | – | – | ·Standard |
| Lane centering | – | – | ·Standard |
| Eatigue driving tips | – | – | – |
| Active DMS fatigue detection | – | – | – |
| In-car vital signs detection | – | – | – |
| Road traffic sign recognition | – | – | ·Standard |
| Traffic light recognition | – | – | ·Standard |
| Night Vision System | – | – | – |
| Passive safety ·Standard 。Optional -none | |||
| Front airbags | ·Main driving seat | ·Main driving seat | ·Main driving seat |
| ·Co-pilot seat | ·Co-pilot seat | ·Co-pilot seat | |
| Side airbags | ·Front Row | ·Front Row | ·Front Row |
| ·Back row | ·Back row | ·Back row | |
| Side curtain airbags | – | – | ·Standard |
| Front knee airbag | – | – | – |
| Center airbag | – | – | – |
| Seat belt not fasted reminder | ·Standard | ·Standard | ·Standard |
| Tire Pressure Monitoring System | ·Tire pressure display | .Tire pressure display | ·Tire pressure display |
| Child seat interface (lSOFlX) | ·Standard | ·Standard | ·Standard |
| Passive pedestrian protection | ·Standard | ·Standard | ·Standard |
| Safety tires | – | – | ·Standard |
| Assistance/Control Configuration ·Standard 。Optional -none | |||
| Parking radar | ·back | ·back | ·back |
| Front vehide departure reminder | – | – | – |
| Driving assistance images | .Reverse image | ·Reverse image | ·Reverse image |
| – | – | – | |
| – | – | .Transparent images | |
| Cruise controlsystem | ·Cruise control | ·Cruise control | ·Cruise control |
| – | – | .Adaptive cruise control | |
| – | – | .Full-speed adaptive cruise control | |
| Automatic Lane Change Assist | – | – | – |
| Automatic exit/entry of ramp | – | – | – |
| Navigation assisted driving | – | – | – |
| Driving assistance level | – | – | ·Level 2 |
| Automatic parking | – | – | – |
| Iracking reverse | – | – | – |
| Memory Parking | – | – | – |
| Automatic parking (AUTOHOLD) | ·Standard | ·Standard | ·Standard |
| Hill Start Assist(HAC) | ·Standard | ·Standard | ·Standard |
| Hill Descent Control (HDC) | ·Standard | ·Standard | ·Standard |
| Variable suspension adjustment | – | – | – |
| Air suspension | – | – | – |
| Electromagnetic induction suspension | – | – | – |
| Variable steering ratio System | – | – | – |
| Front axle limited slip mode | – | – | – |
| Rear axle limited slip mode | – | – | – |
| Low speed four-wheel | – | – | – |
| drive | – | – | – |
| Integral Active Steering | – | – | – |
| Driving mode selection | ·sports | ·sports | ·sports |
| ·Off-road | ·Off-road | ·Off-road | |
| ·Snow | .Snow | ·Snow | |
| ·ECO/Economy | ·ECO/Economy | ·ECO/Economy | |
| ·Standard comfort | ·Standard comfort | ·Standard comfort | |
| Braking Energy Regeneration System | ·Standard | ·Standard | ·Standard |
| Low speed driving warning sound | ·Standard | ·Standard | ·Standard |
| External placement ·Standard 。Optional -none | |||
| Skuliaht Iype | – | – | ·Openable panoramic sunroof |
| Light-sensitive skylight | – | – | – |
| Roof rack | – | – | ·Standard |
| Electric spoiler | – | – | – |
| Active closed grille | – | – | – |
| Aluminum Alloy Wheels | ·Standard | ·Standard | ·Standard |
| Frameless door design | – | – | |
| Cargo Box | ·Placement | ·Placement | ·Placement |
| Hidden door handle | – | ||
